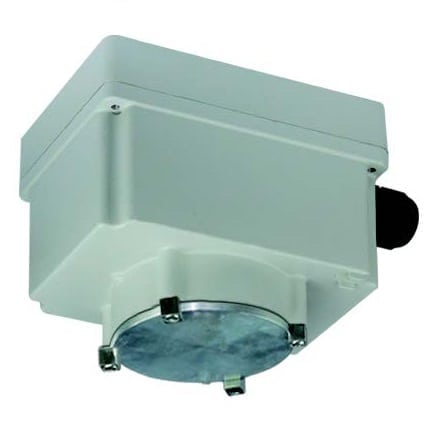

All aluminum enclosure, for immersion heater with 30 mm offset fitting, Y309
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2”, the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
– Can receive a power contactor
– Can receive an internal connection block up to 12 ways and up to 10mm²
Dimensions | 182 × 132 × 144 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

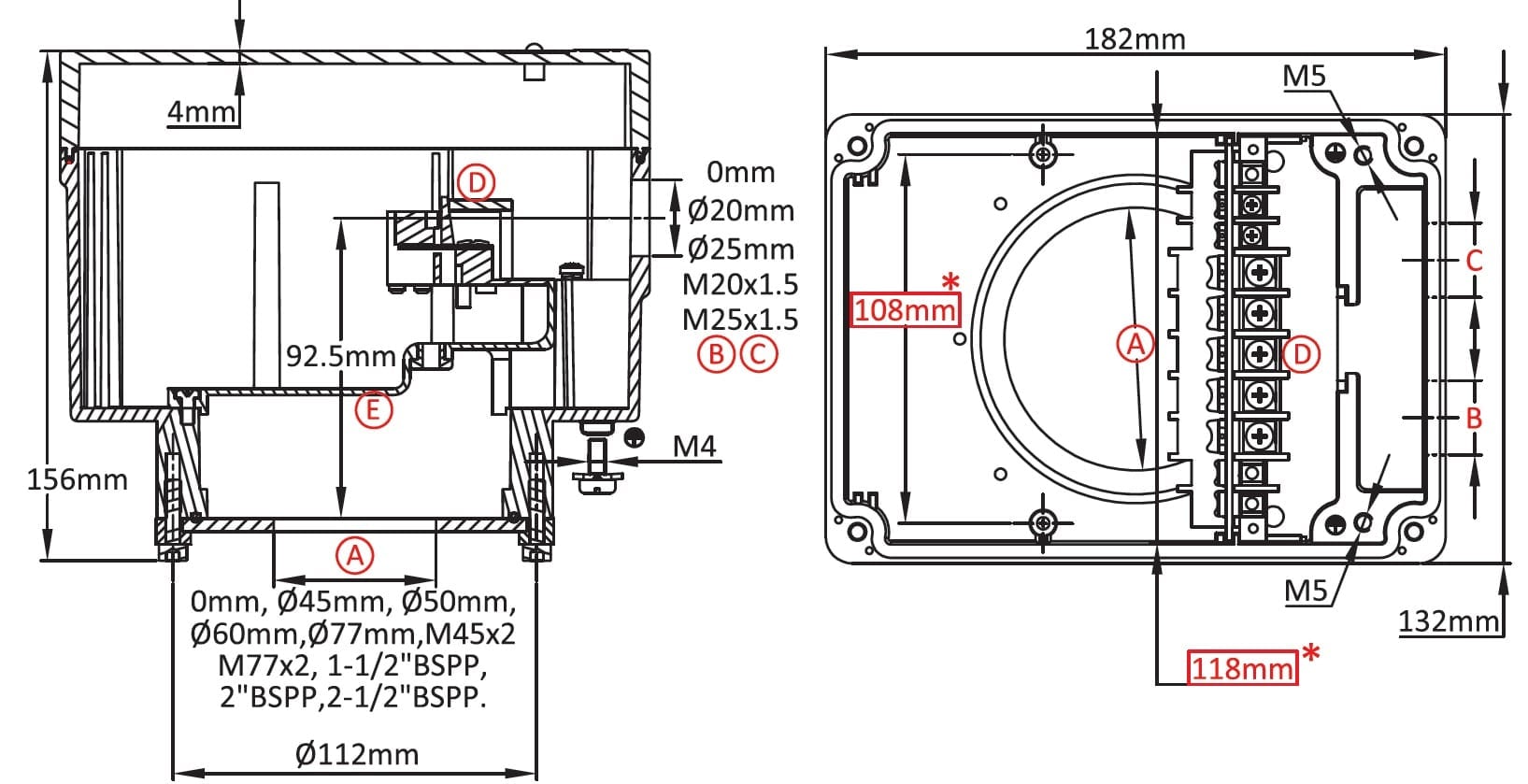

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
All aluminum enclosure, for immersion heater with 30 mm offset fitting
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2”, the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
– Can receive a power contactor
– Can receive an internal connection block up to 12 ways and up to 10mm²
– Output by one or two M25 cable glands
Size: 182 x 132 x 144mm
Volume: 2795 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3090000000J1007 | Y3090000000J100G |
0 | 20 | 0 | Y3090000120J1007 | Y3090000120J100G |
0 | 20 | 20 | Y3090000220J1007 | Y3090000220J100G |
0 | 25 | 0 | Y3090000125J1007 | Y3090000125J100G |
0 | 25 | 25 | Y3090000225J1007 | Y3090000225J100G |
0 | M20×1.5 | 0 | Y30900001T0J1007 | Y30900001T0J100G |
0 | M20×1.5 | M20×1.5 | Y30900002T0J1007 | Y30900002T0J100G |
0 | M25×1.5 | 0 | Y30900001T5J1007 | Y30900001T5J100G |
0 | M25×1.5 | M25×1.5 | Y30900002T5J1007 | Y30900002T5J100G |
45 | 0 | 0 | Y3094500000J1007 | Y3094500000J100G |
45 | 20 | 0 | Y3094500120J1007 | Y3094500120J100G |
45 | 20 | 20 | Y3094500220J1007 | Y3094500220J100G |
45 | 25 | 0 | Y3094500125J1007 | Y3094500125J100G |
45 | 25 | 25 | Y3094500225J1007 | Y3094500225J100G |
45 | M20×1.5 | 0 | Y30945001T0J1007 | Y30945001T0J100G |
45 | M20×1.5 | M20×1.5 | Y30945002T0J1007 | Y30945002T0J100G |
45 | M25×1.5 | 0 | Y30945001T5J1007 | Y30945001T5J100G |
45 | M25×1.5 | M25×1.5 | Y30945002T5J1007 | Y30945002T5J100G |
50 | 0 | 0 | Y3095000000J1007 | Y3095000000J100G |
50 | 20 | 0 | Y3095000120J1007 | Y3095000120J100G |
50 | 20 | 20 | Y3095000220J1007 | Y3095000220J100G |
50 | 25 | 0 | Y3095000125J1007 | Y3095000125J100G |
50 | 25 | 25 | Y3095000225J1007 | Y3095000225J100G |
50 | M20×1.5 | 0 | Y30950001T0J1007 | Y30950001T0J100G |
50 | M20×1.5 | M20×1.5 | Y30950002T0J1007 | Y30950002T0J100G |
50 | M25×1.5 | 0 | Y30950001T5J1007 | Y30950001T5J100G |
50 | M25×1.5 | M25×1.5 | Y30950002T5J1007 | Y30950002T5J100G |
60 | 0 | 0 | Y3096000000J1007 | Y3096000000J100G |
60 | 20 | 0 | Y3096000120J1007 | Y3096000120J100G |
60 | 20 | 20 | Y3096000220J1007 | Y3096000220J100G |
60 | 25 | 0 | Y3096000125J1007 | Y3096000125J100G |
60 | 25 | 25 | Y3096000225J1007 | Y3096000225J100G |
60 | M20×1.5 | 0 | Y30960001T0J1007 | Y30960001T0J100G |
60 | M20×1.5 | M20×1.5 | Y30960002T0J1007 | Y30960002T0J100G |
60 | M25×1.5 | 0 | Y30960001T5J1007 | Y30960001T5J100G |
60 | M25×1.5 | M25×1.5 | Y30960002T5J1007 | Y30960002T5J100G |
77 | 0 | 0 | Y3097700000J1007 | Y3097700000J100G |
77 | 20 | 0 | Y3097700120J1007 | Y3097700120J100G |
77 | 20 | 20 | Y3097700220J1007 | Y3097700220J100G |
77 | 25 | 0 | Y3097700125J1007 | Y3097700125J100G |
77 | 25 | 25 | Y3097700225J1007 | Y3097700225J100G |
77 | M20×1.5 | 0 | Y30977001T0J1007 | Y30977001T0J100G |
77 | M20×1.5 | M20×1.5 | Y30977002T0J1007 | Y30977002T0J100G |
77 | M25×1.5 | 0 | Y30977001T5J1007 | Y30977001T5J100G |
77 | M25×1.5 | M25×1.5 | Y30977002T5J1007 | Y30977002T5J100G |
M45×2 | 0 | 0 | Y309M450000J1007 | Y309M450000J100G |
M45×2 | 20 | 0 | Y309M450120J1007 | Y309M450120J100G |
M45×2 | 20 | 20 | Y309M450220J1007 | Y309M450220J100G |
M45×2 | 25 | 0 | Y309M450125J1007 | Y309M450125J100G |
M45×2 | 25 | 25 | Y309M450225J1007 | Y309M450225J100G |
M45×2 | M20×1.5 | 0 | Y309M4501T0J1007 | Y309M4501T0J100G |
M45×2 | M20×1.5 | M20×1.5 | Y309M4502T0J1007 | Y309M4502T0J100G |
M45×2 | M25×1.5 | 0 | Y309M4501T5J1007 | Y309M4501T5J100G |
M45×2 | M25×1.5 | M25×1.5 | Y309M4502T5J1007 | Y309M4502T5J100G |
M77×2 | 0 | 0 | Y309M770000J1007 | Y309M770000J100G |
M77×2 | 20 | 0 | Y309M770120J1007 | Y309M770120J100G |
M77×2 | 20 | 20 | Y309M770220J1007 | Y309M770220J100G |
M77×2 | 25 | 0 | Y309M770125J1007 | Y309M770125J100G |
M77×2 | 25 | 25 | Y309M770225J1007 | Y309M770225J100G |
M77×2 | M20×1.5 | 0 | Y309M7701T0J1007 | Y309M7701T0J100G |
M77×2 | M20×1.5 | M20×1.5 | Y309M7702T0J1007 | Y309M7702T0J100G |
M77×2 | M25×1.5 | 0 | Y309M7701T5J1007 | Y309M7701T5J100G |
M77×2 | M25×1.5 | M25×1.5 | Y309M7702T5J1007 | Y309M7702T5J100G |
1½”BSPP | 0 | 0 | Y309BA20000J1007 | Y309BA20000J100G |
1½”BSPP | 20 | 0 | Y309BA20120J1007 | Y309BA20120J100G |
1½”BSPP | 20 | 20 | Y309BA20220J1007 | Y309BA20220J100G |
1½”BSPP | 25 | 0 | Y309BA20125J1007 | Y309BA20125J100G |
1½”BSPP | 25 | 25 | Y309BA20225J1007 | Y309BA20225J100G |
1½”BSPP | M20×1.5 | 0 | Y309BA201T0J1007 | Y309BA201T0J100G |
1½”BSPP | M20×1.5 | M20×1.5 | Y309BA202T0J1007 | Y309BA202T0J100G |
1½”BSPP | M25×1.5 | 0 | Y309BA201T5J1007 | Y309BA201T5J100G |
1½”BSPP | M25×1.5 | M25×1.5 | Y309BA202T5J1007 | Y309BA202T5J100G |
2″BSPP | 0 | 0 | Y309BB20000J1007 | Y309BB20000J100G |
2″BSPP | 20 | 0 | Y309BB20120J1007 | Y309BB20120J100G |
2″BSPP | 20 | 20 | Y309BB20220J1007 | Y309BB20220J100G |
2″BSPP | 25 | 0 | Y309BB20125J1007 | Y309BB20125J100G |
2″BSPP | 25 | 25 | Y309BB20225J1007 | Y309BB20225J100G |
2″BSPP | M20×1.5 | 0 | Y309BB201T0J1007 | Y309BB201T0J100G |
2″BSPP | M20×1.5 | M20×1.5 | Y309BB202T0J1007 | Y309BB202T0J100G |
2″BSPP | M25×1.5 | 0 | Y309BB201T5J1007 | Y309BB201T5J100G |
2″BSPP | M25×1.5 | M25×1.5 | Y309BB202T5J1007 | Y309BB202T5J100G |
2½”BSPP | 0 | 0 | Y309BC20000J1007 | Y309BC20000J100G |
2½”BSPP | 20 | 0 | Y309BC20120J1007 | Y309BC20120J100G |
2½”BSPP | 20 | 20 | Y309BC20220J1007 | Y309BC20220J100G |
2½”BSPP | 25 | 0 | Y309BC20125J1007 | Y309BC20125J100G |
2½”BSPP | 25 | 25 | Y309BC20225J1007 | Y309BC20225J100G |
2½”BSPP | M20×1.5 | 0 | Y309BC201T0J1007 | Y309BC201T0J100G |
2½”BSPP | M20×1.5 | M20×1.5 | Y309BC202T0J1007 | Y309BC202T0J100G |
2½”BSPP | M25×1.5 | 0 | Y309BC201T5J1007 | Y309BC201T5J100G |
2½”BSPP | M25×1.5 | M25×1.5 | Y309BC202T5J1007 | Y309BC202T5J100G |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
