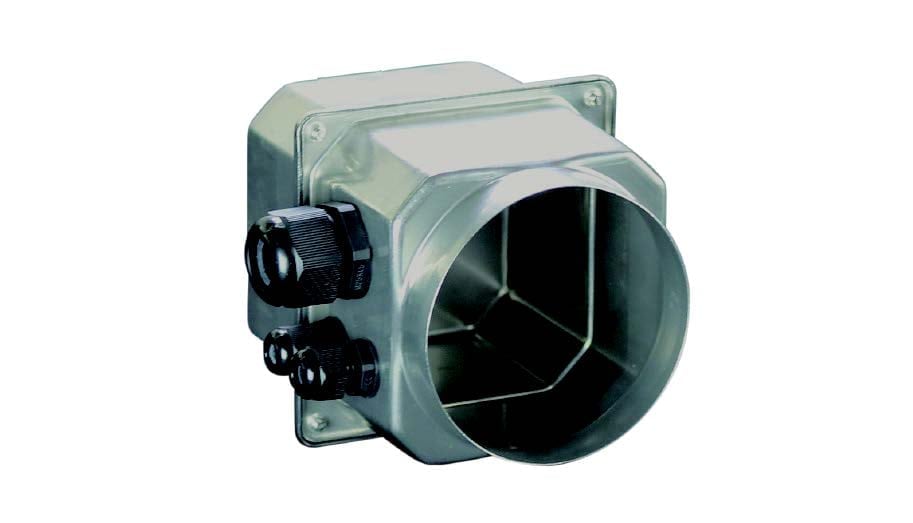

Big size immersion heater or controls enclosure, for direct welding on pipes, Y3TA

– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 100mm tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays

Dimensions	125 × 125 × 135 mm
Ingress protection	IP69K
Mechanical protection	IK7
Housing raw material	304L, 316L, Stainless steel
Volume (cm³)	1668

SKU: Y3TA Categories: Metallic housings, Immersion heater housings Tags: Deep drawn, stamped hexagon, housing, stainless steel, IP69K, immersion heater, IK7

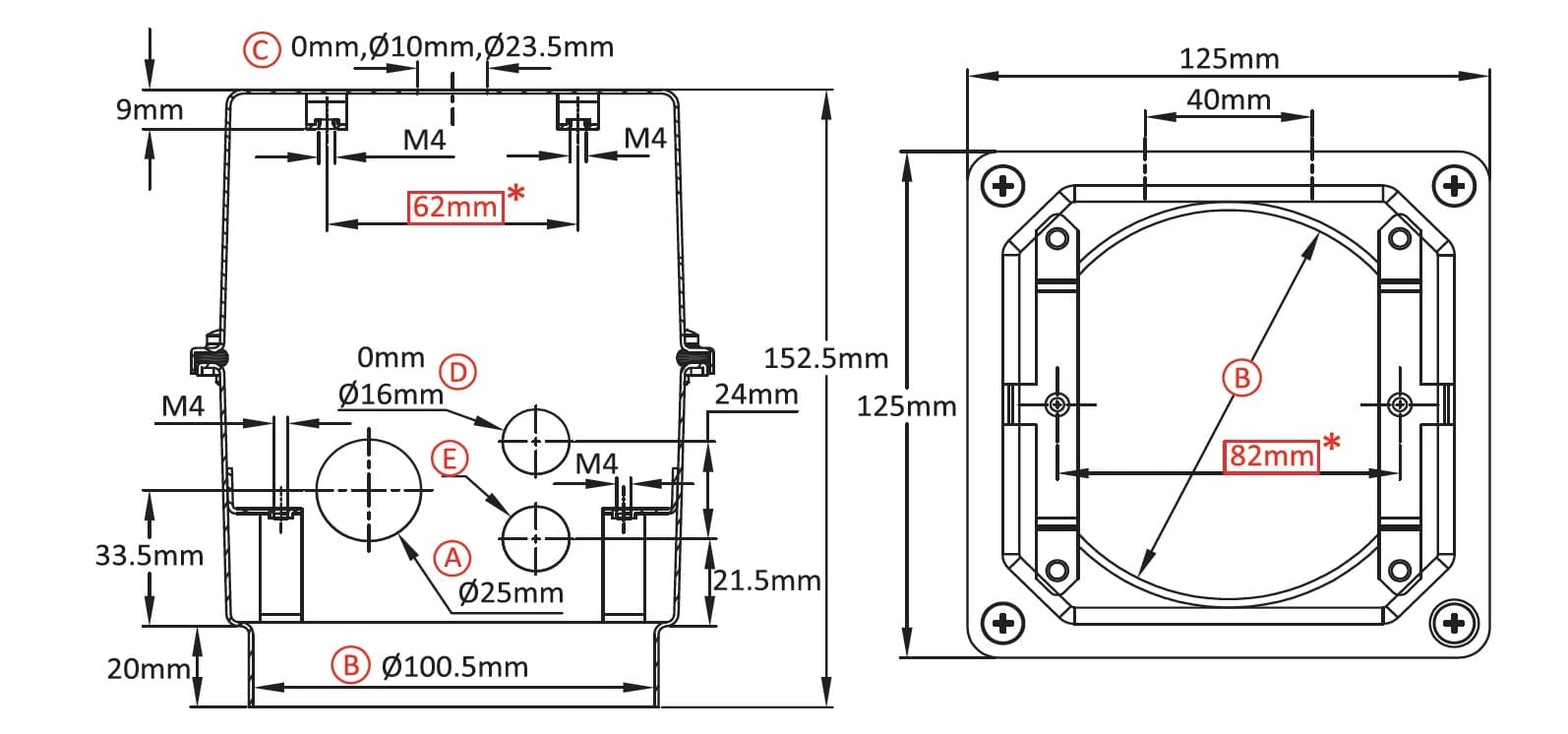

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main features

Big size immersion heater or controls enclosure, for direct welding on pipes
– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 100mm tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays

Size: 125 x 125 x 135 mm

Volume: 1668 cm³

Material: Stainless steel deep drawn cover and bottom.

Ingress protection: IP69K

Mechanical impact resistance: IK7

Screws: Stainless Steel.

Cover gasket: Molded Silicone.

Basic references

Show references

To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.

Downloads

Datasheets

Y3TA datasheet

Drawings

Technical informations associated to this product

Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
Surface engineering of metallic housing
Surface condition is an essential parameter of resistance against atmospheric corrosion. Both aluminum and stainless steel naturally form a protective oxide layer on the surface. Corrosion occurs only when this protective oxide layer is crossed or destroyed. Microcavities of a rough surface allow atmospheric pollutants to initiate local oxidative conditions. This is particularly critical when these pollutants have a different galvanic potential. For example, iron or iron oxide dust can create favourable conditions for perforating corrosion in stainless steel, as well as zinc in the case of aluminum. It is important that the surface of the metal, if exposed to the weather, be smooth so that these pollutants slide and escape naturally.
Electrical contacts
As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element.

A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	304	316
25	100.5	0	16	16	Y3TAA0503S3G1008	Y3TAA0503S3G1009
25	100.5	10	16	16	Y3TAA05A3S3G1008	Y3TAA05A3S3G1009
25	100.5	23.5	16	16	Y3TAA05D3S3G1008	Y3TAA05D3S3G1009
25	100.5	0	0	16	Y3TAA0502C5G1008	Y3TAA0502C5G1009
25	100.5	10	0	16	Y3TAA05A2C5G1008	Y3TAA05A2C5G1009
25	100.5	23.5	0	16	Y3TAA05D2C5G1008	Y3TAA05D2C5G1009
25	100.5	0	0	0	Y3TAA050125G1008	Y3TAA050125G1009
25	100.5	10	0	0	Y3TAA05A125G1008	Y3TAA05A125G1009
25	100.5	23.5	0	0	Y3TAA05D125G1008	Y3TAA05D125G1009
