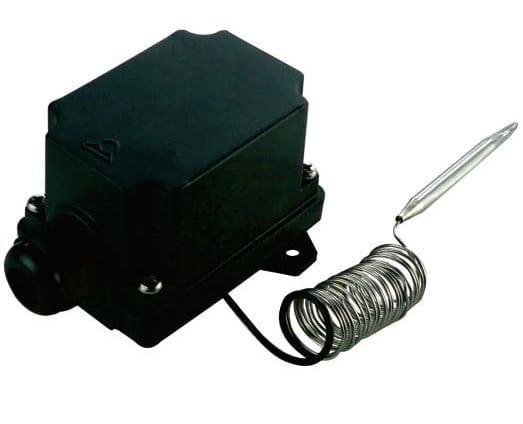

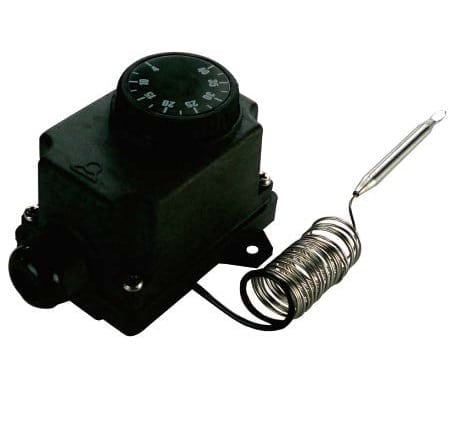

Bulb and capillary thermostat IP44

IP44, black PC-ABS, fiberglass reinforced, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.

Housing raw material	PC-ABS
Color	Black
Ingress protection	IP44
Contact style
Contact Material	Silver
Electrical rating	20A
Voltage	230V, 400V
Electrical life (cycles at rated value)	100000
Measurement type	Remote
Sensing element	Liquid filled bulb
Differential (°C)	1.6±1°C
Setting adjustment	external, internal

SKU: N/A Category: Remote temperature control boxes Tags: control, remote, temperature, IP44 enclosure, Bulb and capillary

Enclosure	Type	Operation	Contact	Measurement	Ranges °C	Models
IP44	Control	Mechanical	SPDT	Remote		Y038 & Y039
Material
PC-ABS

Housing: IP44, black PC-ABS, fiberglass reinforced, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.

Electrical input: One M20 cable gland.

Set point adjustment: By °C printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. °F values available as an option

Sensing element: Liquid filled bulb, distance measurement with capillary.

Temperature adjustment ranges: -35+35°C (-30+95°F), 4-40°C (40-105°F), 30-90°C (85-195°F), 30-110°C (90-230°F), 50-200°C (120-390°F), 50-300°C (120-570°F), 100-400°C (210-750°F), 100-500°C (210-930°F).

Electrical connections: 3 screw terminal connection block

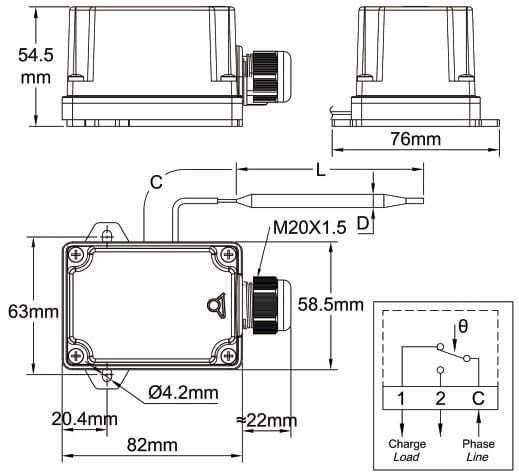

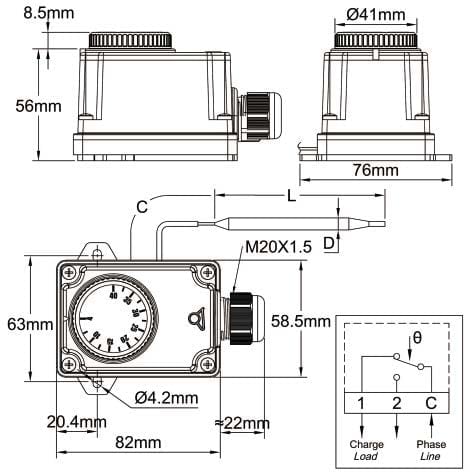

Mounting: Wall mounting, by two side lugs with holes for dia. 4 mm screws, 63 mm distance.

Contact: SPDT

Electrical rating, resistive loads:

-Open on temperature rise contact (C-1) 16A 250V, 50 ~60Hz: >100000 cycles,

20A 250V, 50 ~60Hz: ≥ 50000 cycles,

10A 400V, 50 ~60Hz: ≥ 50000 cycles.

-Close on temperature rise contact (C-2) : 6A 250V 50 ~60Hz: >100000 cycles

Electrical rating, inductive loads:

-Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles

-Close on temperature rise contact (C-2):0.6A 250V 50 ~60Hz: >100000 cycles.

Minimum Storage temperature: -35°C (-30°F)

Maximum ambient temperature: 60°C (140°F)

For more technical information see 8G thermostat technical data sheet

Main references

Show references

Downloadable

Datasheets

Y038/39 datasheet

Technical informations associated to this product

JPC Design concept of the Y0 types enclosures
The design of the Y0 enclosures was made to provide a starting range with a particular selection of low cost solutions. The plastic used is PC-ABC compound, with or without fiberglass reinforcement.
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc.
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
Electrical contacts
As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element.

Temperature	Internal adjustment	External adjustment	Bulb diameter (D, mm)	Bulb length (L, mm)	Differential°C (°F)	Max temperature on bulb °C (°F)
-35+35°C (-30+95°F)	Y039GB-35035AO6J	Y038GB-35035AO6J	6	98	1,6±1°C (2,9±2°F)	55 (130)
4-40°C (40-105°F)	Y039GB004040AO6J	Y038GB004040AO6J	6	140	1±0.5°C (1,8±1°F)	60 (140)
30-90°C (85-195°F)	Y039GB030090AO6J	Y038GB030090AO6J	6	87	2.5±1°C (4,5±1,8F)	120 (250)
30-110°C (90-230°F)	Y039GB030110AO6J	Y038GB030110AO6J	6	93	2.5±1°C (4,5±1,8F)	150 (300)
50-200°C (120-390°F)	Y039GB050200AO6J	Y038GB050200AO6J	6	59	4±2°C (7±3.6F)	250 (480)
50-300°C (120-570°F)	Y039GB050300AO3J	Y038GB050300AO3J	3	145	10±5 (18±9)	350 (660)
100-400°C (210-750°F)	Y039GB100400AO3J	Y038GB100400AO3J	3	93	10±5 (18±9)	430 (800)
100-500°C (210-930°F)	Y039GB100500AO4J	Y038GB100500AO4J	4	235	10±5 (18±9)	550 (1000)
