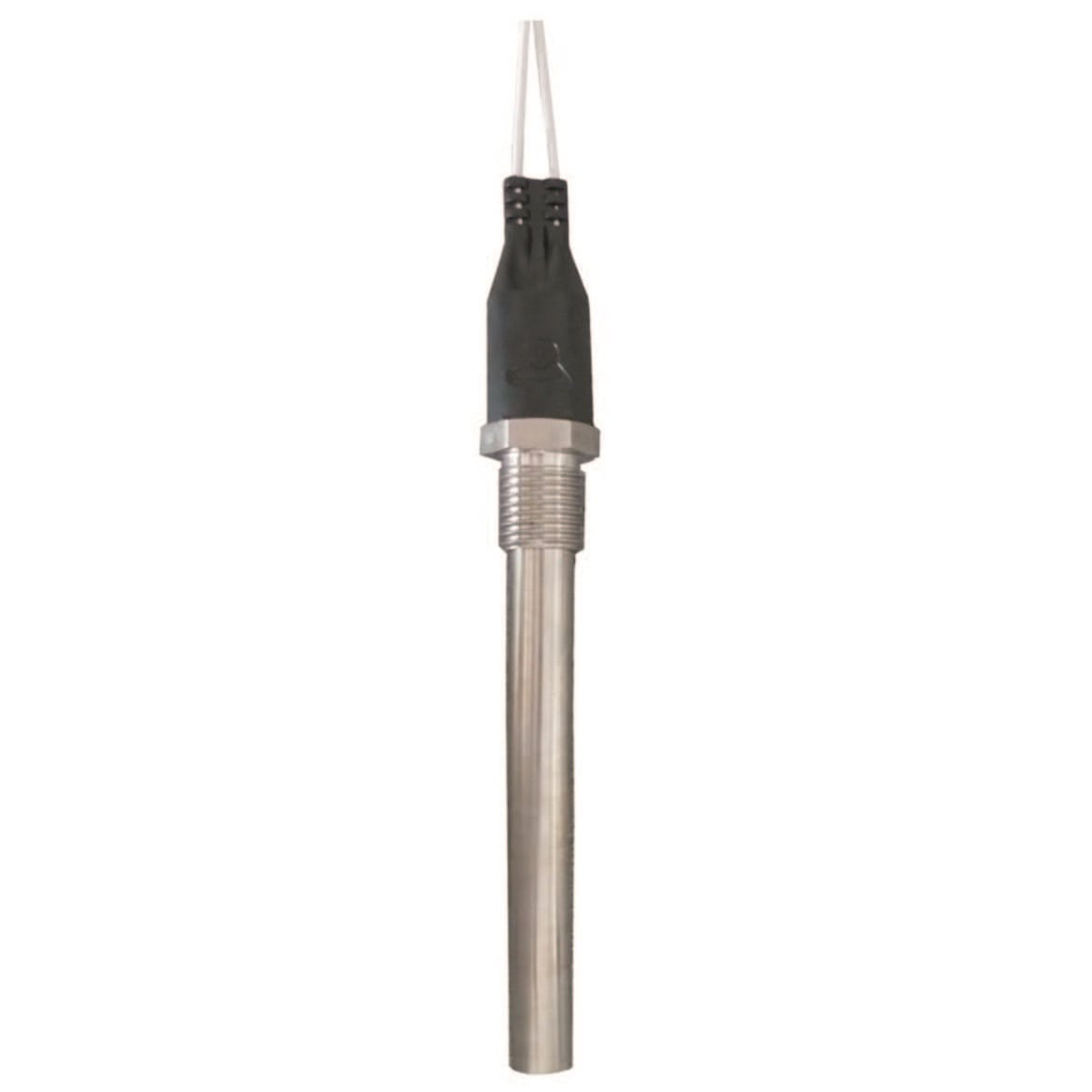

Dia. 10mm cartridge thermostat 1/2″BSPT or M14x1.5 fitting, calibration from 50 to 120°C

Detection of a temperature value in liquids, water, hydraulic oils, thermal oils. Two versions of electrical contacts: Gold-plated for low power circuit, like PLC or 2A 250V for relay coils or resistive circuits.

Ingress protection

Mechanical protection

Maximum pressure

Rod raw material

Fitting's thread

,

Sensor cable length (mm)

Contact Material

,

Electrical rating

,

SKU: N/A Categories: , , , , , , Tags: , , , , , , ,

Applications

Detection of a temperature value in liquids, water, hydraulic oils, thermal oils. Two versions of electrical contacts: Gold-plated for low power circuit, like PLC or 2A 250V for relay coils or resistive circuits.

Main features

Probe material: 304 stainless steel sheath diameter 10mm, with AISI 304 fitting.

Calibration temperature: 50 to 120°C（ 100 pcs MOQ applicable for specific values).

Tolerance on the opening temperature: ± 5°C

Fittings: 1/2 “BSPT (tapered) or M14x150 with gasket seat.

Immersed length (L1): Standard 90mm and 170mm (50, 230, 300mm on request)

Protection: IP65, IK10.

Pressure resistance: 25 bar.

Part sensitive to temperature: Located at the end of the sheath, on 35mm.

Contact: open by temperature rise. (Close on temperature rise possible on creep action models)

Electrical rating:

  • PLC temperature alarm version: silver plated gold contact, creep action, 8A resistive in 12V/24V DC 60,000 cycles, differential less than 2°C.
  • Thermal safety version: snap action silver contact, 2A, 250VAC, 100,000 cycles, differential higher than 10°C.

Cable outlet: 17x55mm PA66 overmolding.

Connection: H05VV F, 2 x 0.75 mm² cable, standard length 1m. (Connectors on cable end possible on request)
