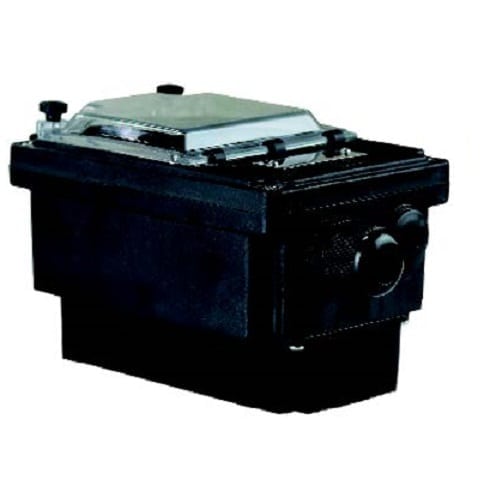

Enclosure for immersion heater with electronic temperature control with heat sink for solid state relay (SSR), Y3N4
– Aluminum extension on rear side with heat exchanger, allows the assembly of static relays
– Extension on the back accepts 1 “1/4, 1” 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring
– Front panel with hinged polycarbonate porthole
| Dimensions | 130 × 180 × 132 mm |
|---|---|
| Ingress protection | |
| Mechanical protection | |
| Housing raw material | |
| Volume (cm³) |

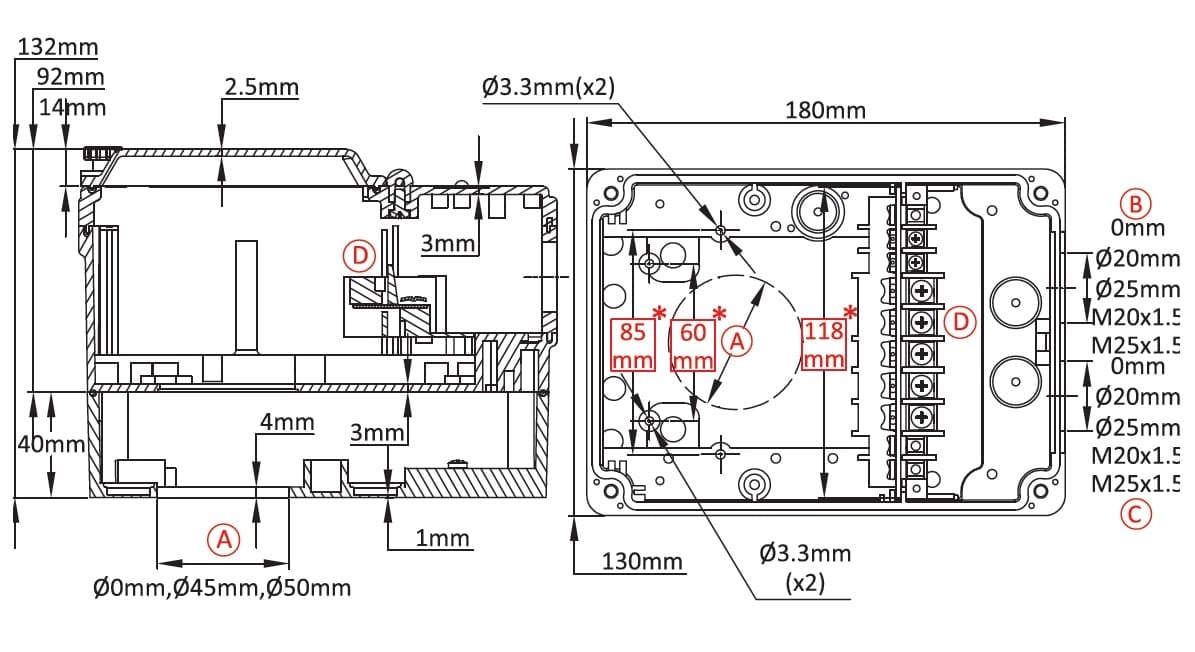

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Enclosure with window, for immersion heater with electronic temperature control with heat sink for solid state relay (SSR)
– Aluminum extension on rear side with heat exchanger, allows the assembly of static relays
– Extension on the back accepts 1 “1/4, 1” 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring
– Front panel with hinged polycarbonate porthole
– Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, up to M25
Size: 130 x 180 x 132 mm
Volume: 2580 cm³
Material: PA66 housing, PC transparent window and aluminium heat sink for solid state relay
Ingress protection: IP69K
Mechanical impact resistance: IK10
