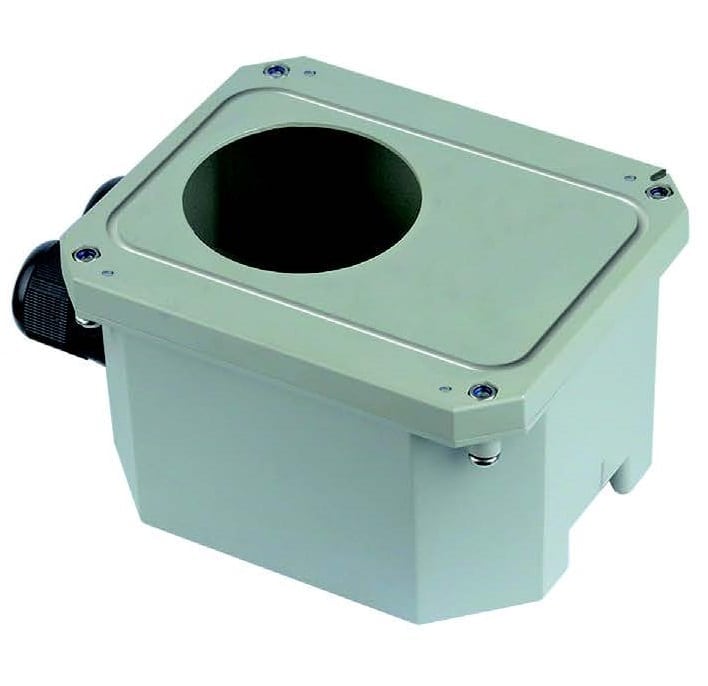

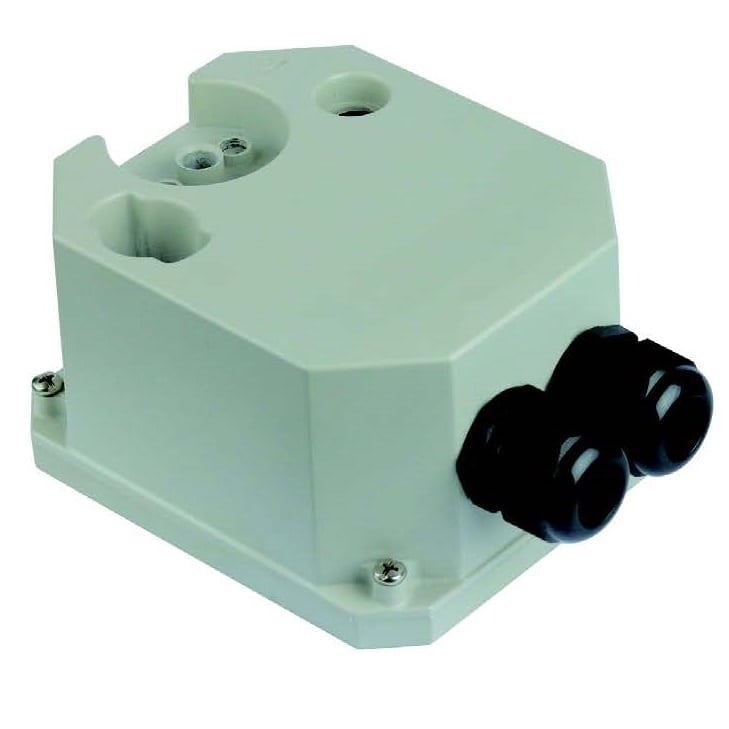

Large size enclosure for immersion heater, finned heaters with external adjustment knob, Y3P6
– Cover has deep recess for protected external knob, access from front or side of cover
– Can receive backside holes for 1″1/4, 1″1/2, M45x2, 2″, 2″1/2 and M77x2, fittings with double thread and inner nut, or single thread with rotating ring.
– Designed to receive toggle switch and pilot light on cover, protected against shocks
– Can accommodate wall mounting brackets
– Can also receive back side holes for finned heating elements
| Dimensions | 89 × 124 × 155 mm |
|---|---|
| Ingress protection | |
| Mechanical protection | |
| Housing raw material |

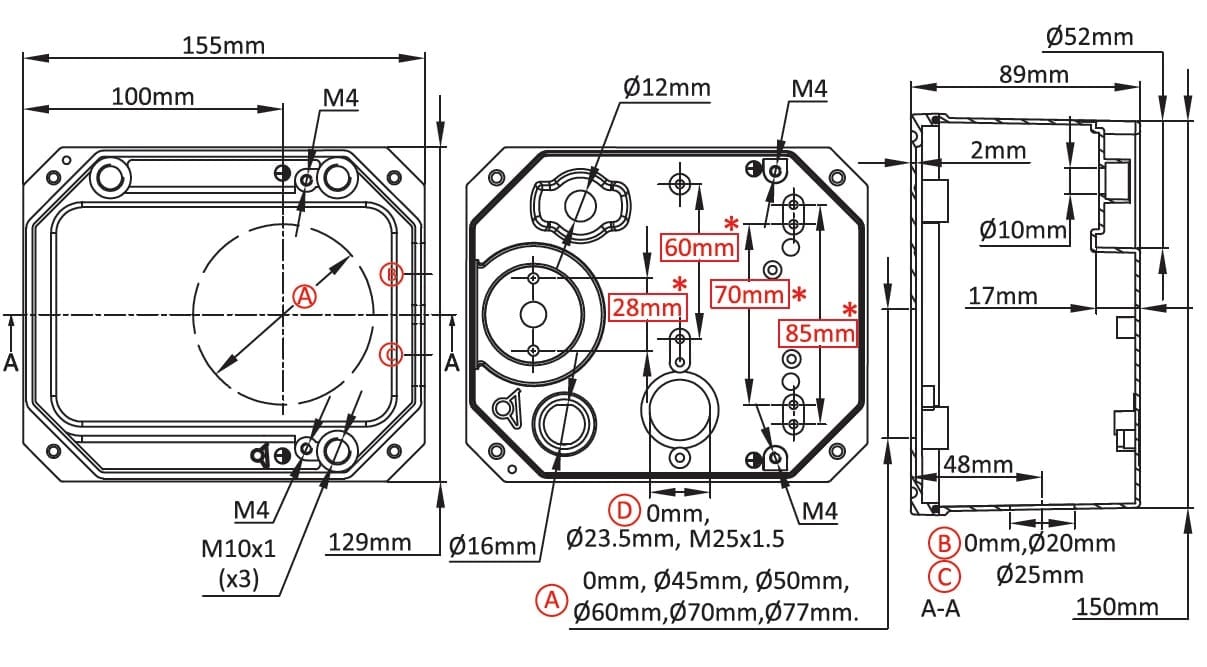

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Large size enclosure for immersion heater, finned heaters with external adjustment knob
– Cover has deep recess for protected external knob, access from front or side of cover
– Can receive backside holes for 1″1/4, 1″1/2, M45x2, 2″, 2″1/2 and M77x2, fittings with double thread and inner nut, or single thread with rotating ring.
– Designed to receive toggle switch and pilot light on cover, protected against shocks
– Can accommodate wall mounting brackets
– Can also receive back side holes for finned heating elements
– Output by one or two M20 or M25 cable glands
Size: 89 x 124 x 155 mm
Volume: 1600 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
