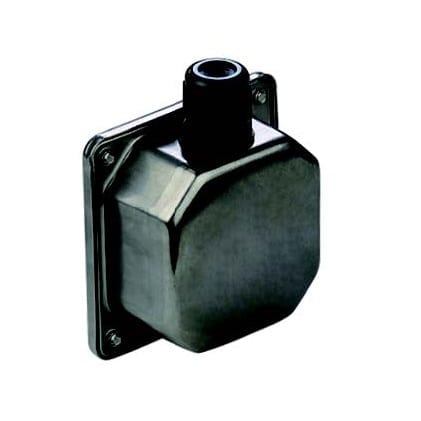

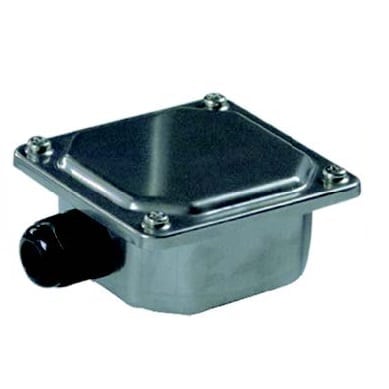

Miniature enclosure for immersion heater, temperature sensor or level sensor, Y3L3
-Flat lid

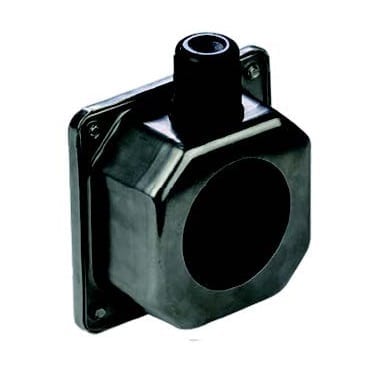

– Bottom side without hole, or with hole for orientable fitting with ringor inside nut
– Hole for M20 cable gland
| Dimensions | 75 × 60 × 44 mm |
|---|---|
| Ingress protection | |
| Mechanical protection | |
| Housing raw material | |
| Volume (cm³) |

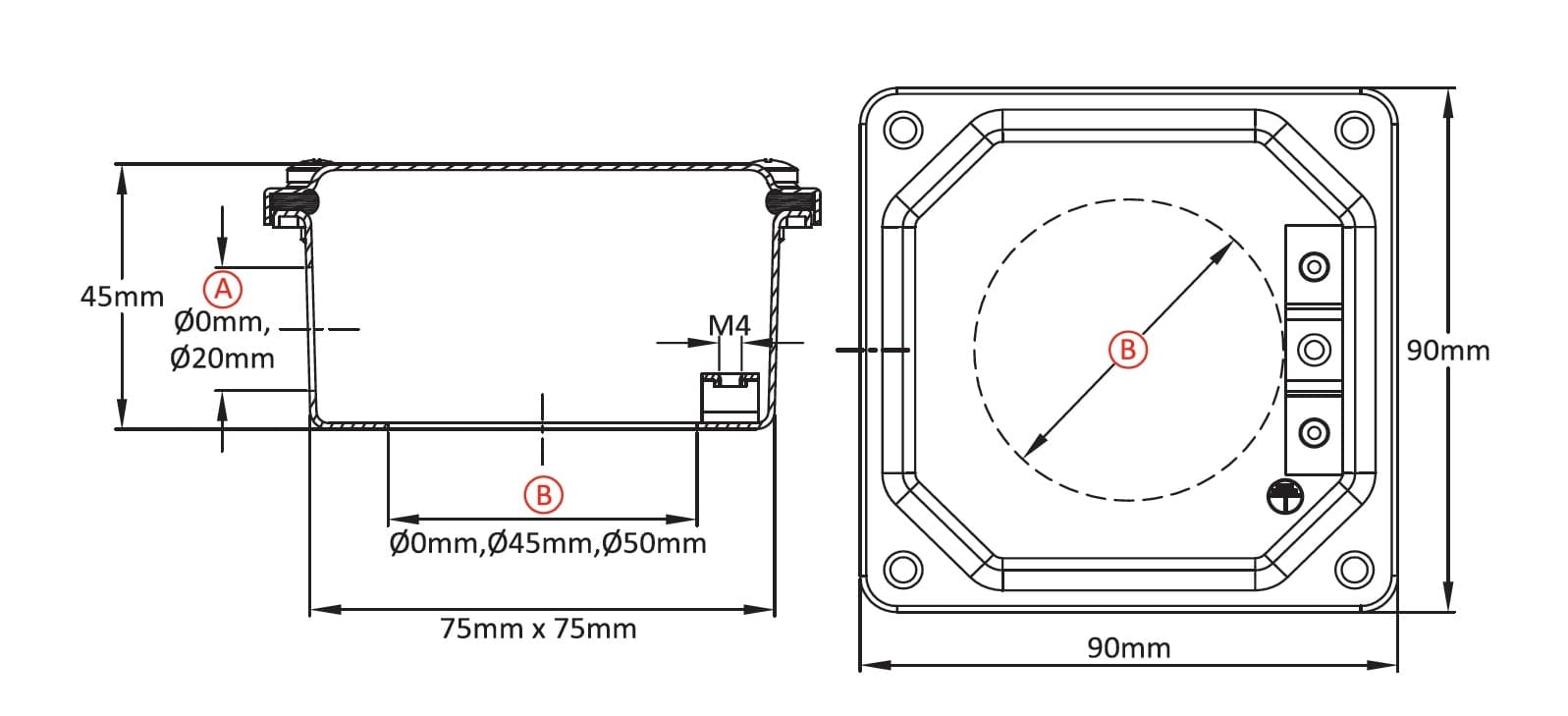

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Miniature enclosure for immersion heater, temperature sensor or level sensor
-Flat lid
– Bottom side without hole, or with hole for orientable fitting with ringor inside nut
– Hole for M20 cable gland
Size: 90 x 90 x 45 mm
Volume: 206 cm³
Material: Stainless steel 304 or 316
Ingress protection: IP69K
Mechanical impact resistance: IK7
Main references
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
