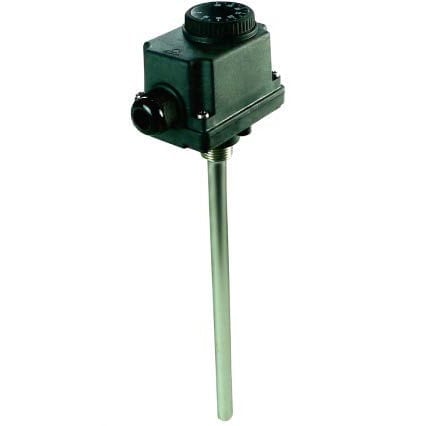

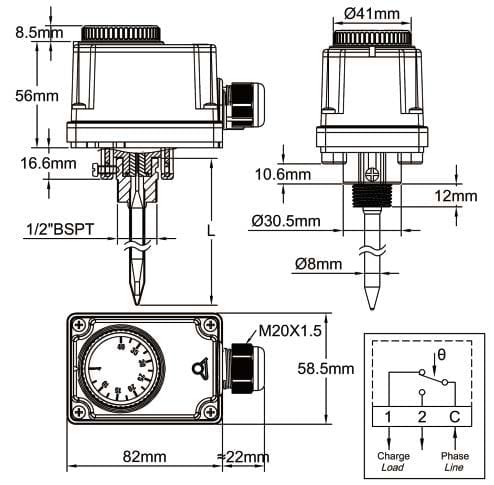

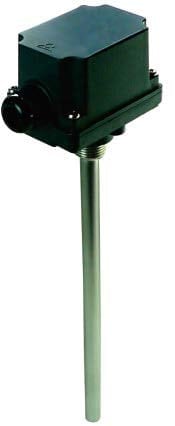

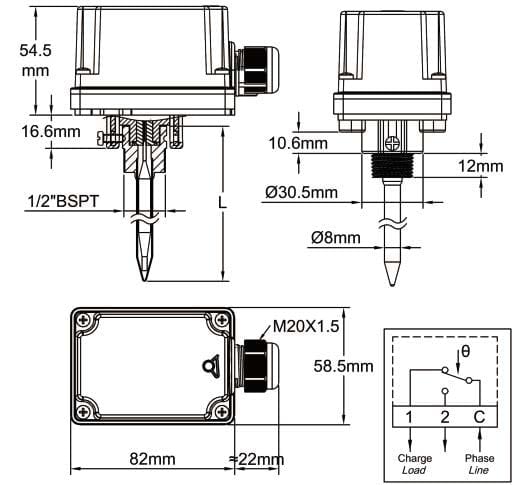

Rod temperature control thermostat IP44

Housing: IP44, black PC-ABS, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.

Housing raw material	PC-ABS
Color	Black
Ingress protection	IP44
Contact Material	Silver
Electrical rating	20A
Voltage	230V, 400V
Electrical life (cycles at rated value)	100000
Measurement type	Rod
Sensing element	Liquid filled bulb
Differential (°C)	1.6±1°C
Setting adjustment	external, internal
Rod length (mm)	90, 230, 300
Rod raw material	AISI 304, Nickel plated brass

SKU: N/A Category: Rod temperature control boxes Tags: Bulb and capillary, control, temperature, rod, IP44 enclosure

Enclosure	Type	Operation	Contact	Measurement	Ranges °C	Models
IP44	Control	Mechanical	SPDT	Rod		Y048 & Y049
Material
PC-ABS

Housing: IP44, black PC-ABS, UL94V0. High impact and UV resistance. 2 removable wall mounting lugs.

Cable input: One M20 cable gland.

Set point adjustment: By °C printed knob for external adjustment models, by screw driver and printed dial on internal adjustment models. °F values available as an option.

Sensing element: Liquid filled bulb, located inside a backside mounted pocket in 304L stainless steel or nickel plated brass.

Adjustment ranges: -35+35°C (-30+95°F), 4-40°C (40-105°F), 30-90°C (85-195°F), 30-110°C (90-230°F)

Rod length: 90, 230, 300 mm. Other length on request

Electrical connections: 3 screw terminal connection block

Mounting: by the ½” BSPT pocket fitting

Contact: SPDT

Electrical rating, resistive loads:

-Open on temperature rise contact (C-1) 16A 250V, 50 ~60Hz: >100000 cycles,

20A 250V, 50 ~60Hz: ≥ 50000 cycles,

10A 400V, 50 ~60Hz: ≥ 50000 cycles.

-Close on temperature rise contact (C-2) (C-2): 6A 250V 50 ~60Hz: >100000 cycles

Electrical rating, inductive loads:

-Open on temperature rise contact (C-1): 6A 250V, 50 ~60Hz: >100000 cycles

-Close on temperature rise contact (C-2):0.6A 250V 50 ~60Hz: >100000 cycles.

Minimum storage temperature: -35°C (-30°F)

Maximum ambient temperature: 60°C (140°F)

Option: Short plastic pocket for swimming pool applications

For more technical information see 8G thermostat technical data sheet

Main references

Show references

Downloadable

Datasheets

Y048/49 datasheet

Technical informations associated to this product

JPC Design concept of the Y0 types enclosures
The design of the Y0 enclosures was made to provide a starting range with a particular selection of low cost solutions. The plastic used is PC-ABC compound, with or without fiberglass reinforcement.
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc.
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
Electrical contacts
As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element.

Temperature ranges °C (°F)	References with rod length L=90 mm	References with rod length L=230 mm	References in °C with rod length L=300 mm	Differential°C (°F)	Max temperature on rod °C (°F)
-35+35°C(-30+95°F)		Y048GB-35035N23J	Y048GB-35035N30J	1,6±1°C (2,9±2°F)	55 (130)
4-40°C(40-105°F)		Y048GB004040N23J	Y048GB004040N30J	1±0.5°C (1,8±1°F)	60 (140)
30-90°C(85-195°F)	Y048GB030090N09J	Y048GB030090N23J	Y048GB030090N30J	2.5±1°C (4,5±1,8F)	120 (250)
30-110°C(90-230°F)	Y048GB030110N09J	Y048GB030110N23J	Y048GB030110N30J	2.5±1°C (4,5±1,8F)	150 (300)
