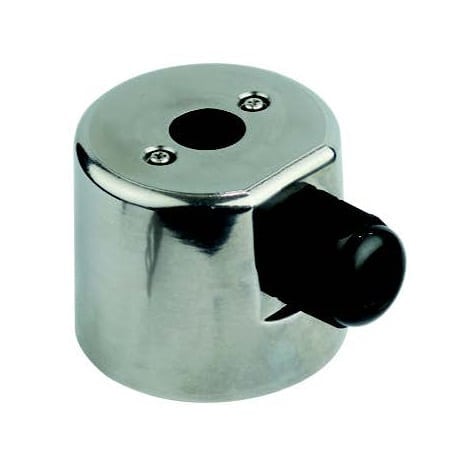

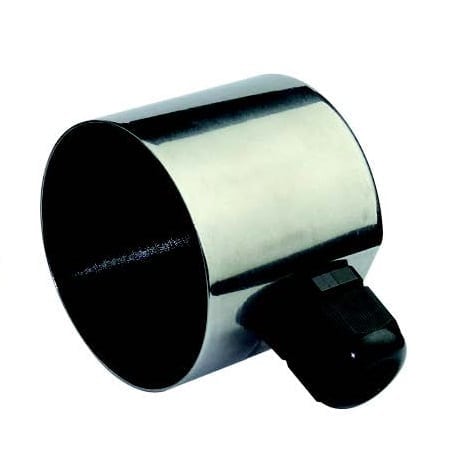

Round, large diameter, simplified immersion heater enclosure, Y3K2

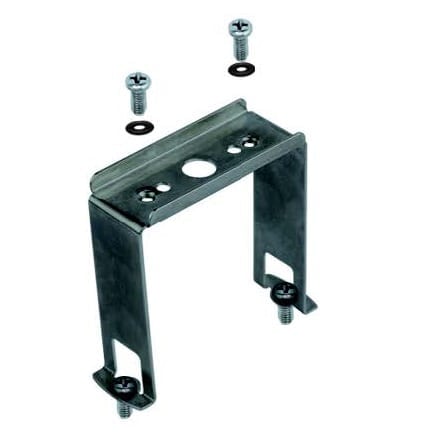

– Mounting with an internal bracket on single thread brass or stainless steel fittings, 2″1/2 and M45x2
– Output by M25 cable gland
| Dimensions | 86 × 86 × 72 mm |
|---|---|
| Ingress protection | |
| Mechanical protection | |
| Housing raw material | |
| Volume (cm³) |

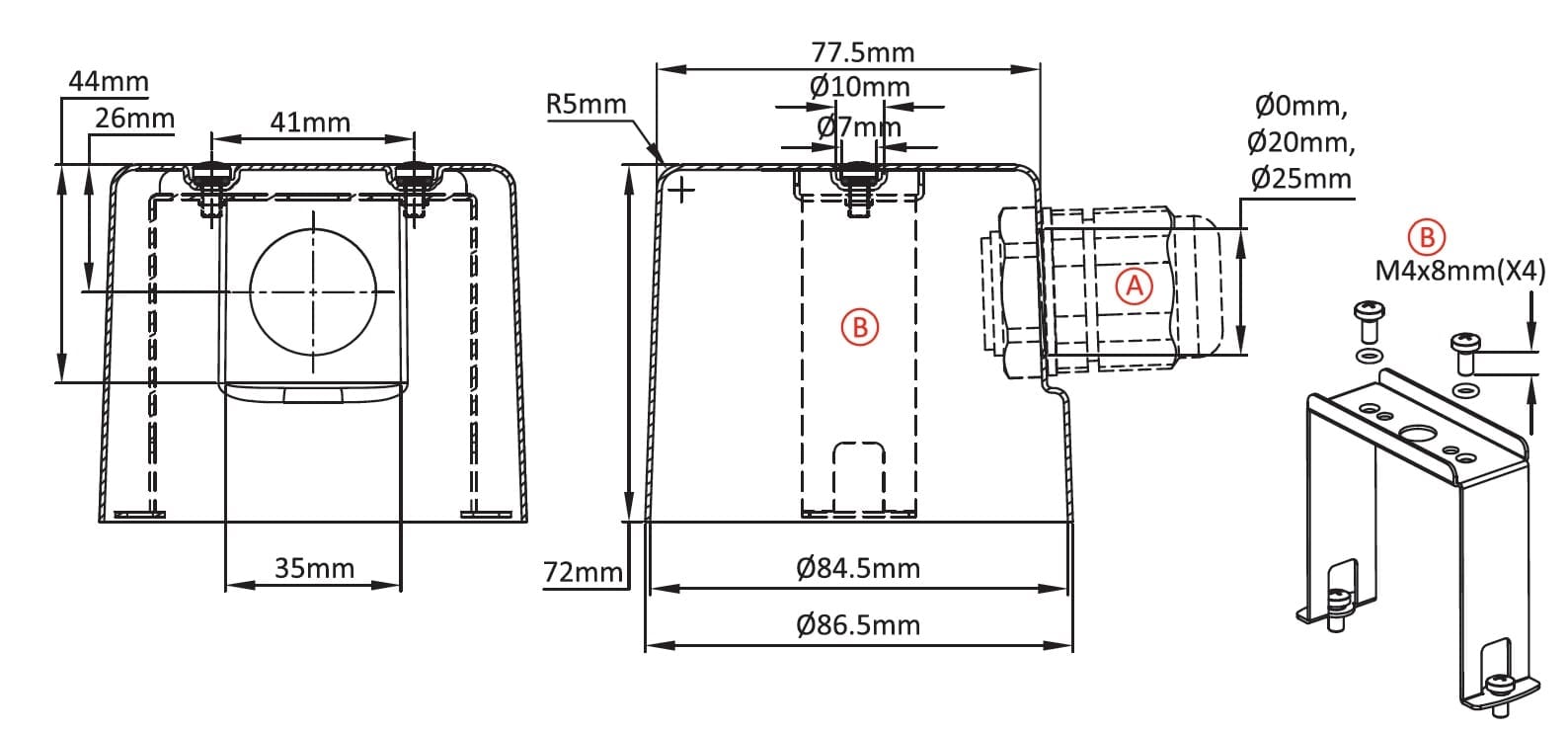

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Round, large diameter, simplified immersion heater enclosure
– Mounting with an internal bracket on single thread brass or stainless steel fittings, 2″1/2 and M45x2
– Output by M25 cable gland
Size: Dia.86 x 72 mm
Volume: 390 cm³
Material: Stainless steel 304 or 316
Ingress protection: IP69K
Mechanical impact resistance: IK7
Main references
3D models are available on request under .stp format
