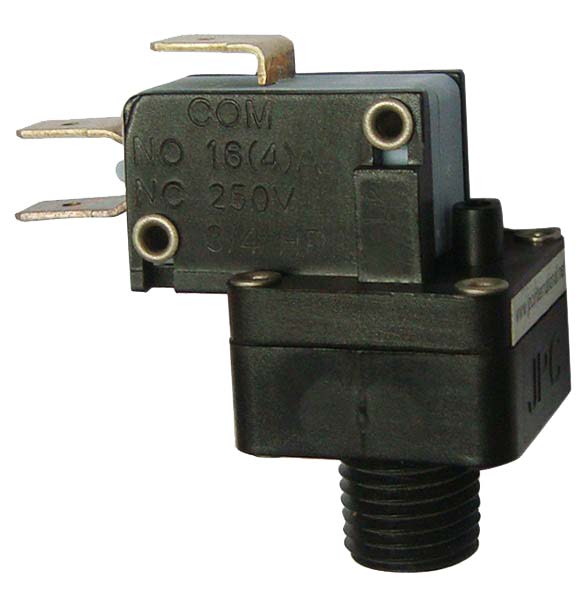

Snap action contact miniature pressure switches, SPDT contact
Uses: High electrical rating, for 250V .
Main applications: Pressure sensing on water heaters, boilers, and electrical appliances.
Housing raw material | |
---|---|
Fitting raw material | |
Electrical rating | |
Voltage | |
Contact Material | |
Fluid | |
Max operating temperature (°C) | |
Min operating temperature (°C) | |
Maximum pressure | |
Set point calibration (mbar) |
Uses: High electrical rating, for 250V .
Main applications: Pressure sensing on water heaters, boilers, and electrical appliances.
Membranes: EPDM, dia 22 mm. Silicone or NBR on request, Double membrane on request.
Fluid: water or air

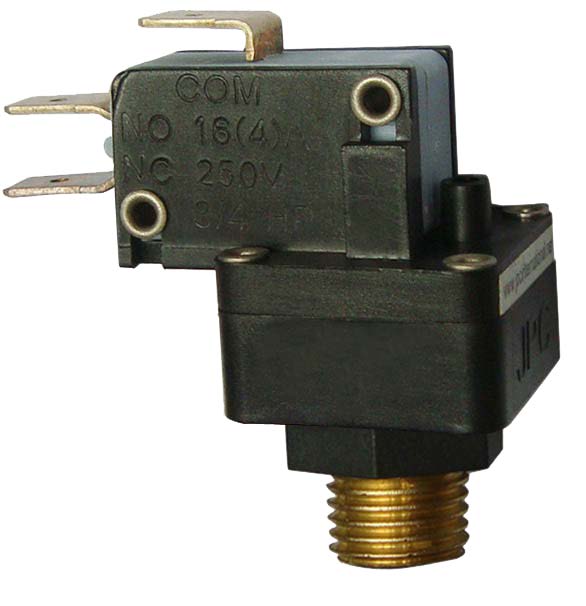

Fitting: Plastic or metal
Pressure: positive
Housing: PA66, UL94 VO
Contact: SPDT, snap action. NO or NC contacts available with MOQ
Electrical rating: Depends on microswitch operating force that is linked to the electrical rating
- Standard rating micro-switch (medium and high pressure calibration only): 16A 125/250VAC;1/2HP 125VAC;3/4HP 250VAC
- High rating micro-switch (medium and high pressure calibration only): 2HP 240V, 21(8) A 240V (UL, CSA VDE switch)
- Low force micro-switch (set points less than 150 mbar): 1/4HP 6(1) A 240V ( UL, CSA VDE switch)
- On request: up to 25A 250V
Action: momentary.
Set point calibration: factory calibrated and sealed, not field adjustable
Set point calibration limits: from 50 to 1500 mbar
Electrical connection: 6.35 x 0.8 mm quick connect terminals
Maximum pressure: 4 bars (58 PSI)
Ambient temperature limits: 0 to 85°C
Dimensions
Available pressure inlet fittings (1)
|
* |
* |
* |
* |
|
|
* | * | * |
** |
** |
** |
* only available for metal fitting
** only available for plastic fitting |
References (with 1/8″ NPT fitting)
Fitting material | Standard rating micro-switch (calibration: 800mbar) | Low force micro-switch (calibration: 150mbar) | High rating micro-switch (calibration 800mbar) |
Plastic | ZQ2K28U1UH000000 | ZQ2728U50A500000 | ZQ2K28U6UH000000 |
Metal | ZQ2K2RU1UH000000 | ZQ272RU50A500000 | ZQ2K2RU6UH000000 |
Contact us for other calibration or pressure inlet
Technical specifications sheet
