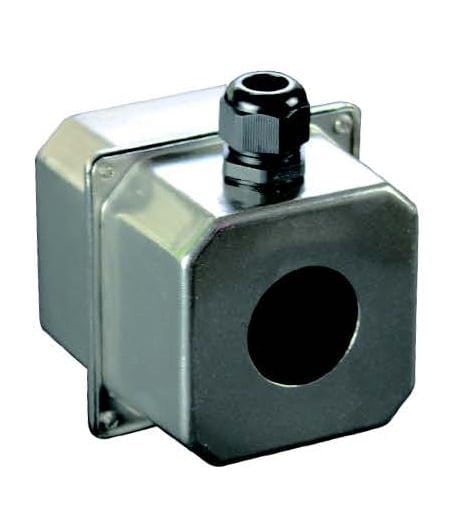

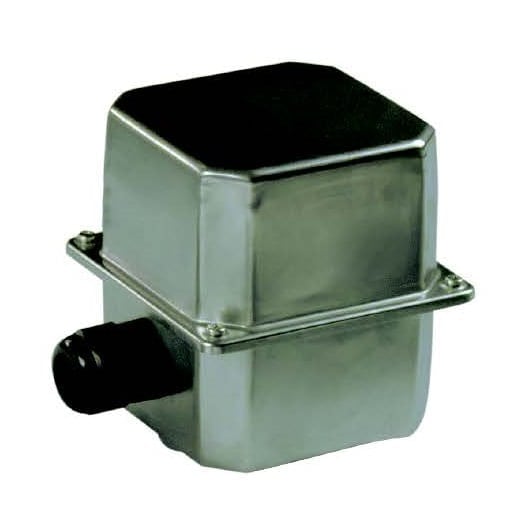

Stainless steel big size enclosure for immersion heater or temperature sensor, Y3S7
Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2
– Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays
Dimensions | 125 × 125 × 130 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

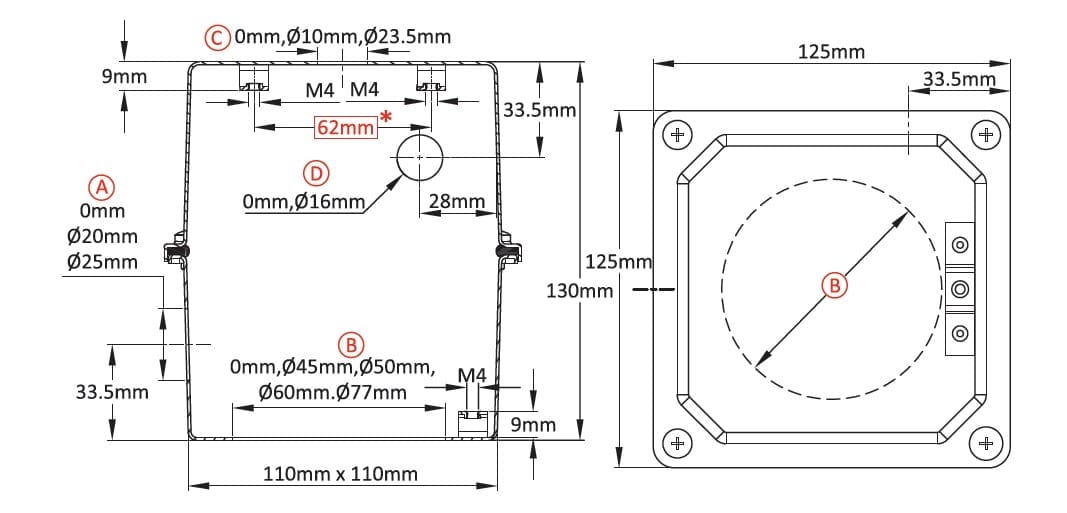

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Big size enclosure for immersion heater or temperature sensor
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2
– Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays
Size: 125 x 125 x 130 mm
Volume: 1505 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | D (mm) | 304 | 316 |
0 | 0 | 0 | 0 | Y3S70000000G1008 | Y3S70000000G1009 |
0 | 0 | 0 | 16 | Y3S70000116G1008 | Y3S70000116G1009 |
0 | 0 | 10 | 0 | Y3S7000A000G1008 | Y3S7000A000G1009 |
0 | 0 | 10 | 16 | Y3S7000A116G1008 | Y3S7000A116G1009 |
0 | 0 | 23.5 | 0 | Y3S7000D000G1008 | Y3S7000D000G1009 |
0 | 0 | 23.5 | 16 | Y3S7000D116G1008 | Y3S7000D116G1009 |
0 | 45 | 0 | 0 | Y3S74500000G1008 | Y3S74500000G1009 |
0 | 45 | 0 | 16 | Y3S74500116G1008 | Y3S74500116G1009 |
0 | 45 | 10 | 0 | Y3S7450A000G1008 | Y3S7450A000G1009 |
0 | 45 | 10 | 16 | Y3S7450A116G1008 | Y3S7450A116G1009 |
0 | 45 | 23.5 | 0 | Y3S7450D000G1008 | Y3S7450D000G1009 |
0 | 45 | 23.5 | 16 | Y3S7450D116G1008 | Y3S7450D116G1009 |
0 | 50 | 0 | 0 | Y3S75000000G1008 | Y3S75000000G1009 |
0 | 50 | 0 | 16 | Y3S75000116G1008 | Y3S75000116G1009 |
0 | 50 | 10 | 0 | Y3S7500A000G1008 | Y3S7500A000G1009 |
0 | 50 | 10 | 16 | Y3S7500A116G1008 | Y3S7500A116G1009 |
0 | 50 | 23.5 | 0 | Y3S7500D000G1008 | Y3S7500D000G1009 |
0 | 50 | 23.5 | 16 | Y3S7500D116G1008 | Y3S7500D116G1009 |
0 | 60 | 0 | 0 | Y3S76000000G1008 | Y3S76000000G1009 |
0 | 60 | 0 | 16 | Y3S76000116G1008 | Y3S76000116G1009 |
0 | 60 | 10 | 0 | Y3S7600A000G1008 | Y3S7600A000G1009 |
0 | 60 | 10 | 16 | Y3S7600A116G1008 | Y3S7600A116G1009 |
0 | 60 | 23.5 | 0 | Y3S7600D000G1008 | Y3S7600D000G1009 |
0 | 60 | 23.5 | 16 | Y3S7600D116G1008 | Y3S7600D116G1009 |
0 | 77 | 0 | 0 | Y3S77700000G1008 | Y3S77700000G1009 |
0 | 77 | 0 | 16 | Y3S77700116G1008 | Y3S77700116G1009 |
0 | 77 | 10 | 0 | Y3S7770A000G1008 | Y3S7770A000G1009 |
0 | 77 | 10 | 16 | Y3S7770A116G1008 | Y3S7770A116G1009 |
0 | 77 | 23.5 | 0 | Y3S7770D000G1008 | Y3S7770D000G1009 |
0 | 77 | 23.5 | 16 | Y3S7770D116G1008 | Y3S7770D116G1009 |
20 | 0 | 0 | 0 | Y3S70000120G1008 | Y3S70000120G1009 |
20 | 0 | 0 | 16 | Y3S700002C0G1008 | Y3S700002C0G1009 |
20 | 0 | 10 | 0 | Y3S7000A120G1008 | Y3S7000A120G1009 |
20 | 0 | 10 | 16 | Y3S7000A2C0G1008 | Y3S7000A2C0G1009 |
20 | 0 | 23.5 | 0 | Y3S7000D120G1008 | Y3S7000D120G1009 |
20 | 0 | 23.5 | 16 | Y3S7000D2C0G1008 | Y3S7000D2C0G1009 |
20 | 45 | 0 | 0 | Y3S74500120G1008 | Y3S74500120G1009 |
20 | 45 | 0 | 16 | Y3S745002C0G1008 | Y3S745002C0G1009 |
20 | 45 | 10 | 0 | Y3S7450A120G1008 | Y3S7450A120G1009 |
20 | 45 | 10 | 16 | Y3S7450A2C0G1008 | Y3S7450A2C0G1009 |
20 | 45 | 23.5 | 0 | Y3S7450D120G1008 | Y3S7450D120G1009 |
20 | 45 | 23.5 | 16 | Y3S7450D2C0G1008 | Y3S7450D2C0G1009 |
20 | 50 | 0 | 0 | Y3S75000120G1008 | Y3S75000120G1009 |
20 | 50 | 0 | 16 | Y3S750002C0G1008 | Y3S750002C0G1009 |
20 | 50 | 10 | 0 | Y3S7500A120G1008 | Y3S7500A120G1009 |
20 | 50 | 10 | 16 | Y3S7500A2C0G1008 | Y3S7500A2C0G1009 |
20 | 50 | 23.5 | 0 | Y3S7500D120G1008 | Y3S7500D120G1009 |
20 | 50 | 23.5 | 16 | Y3S7500D2C0G1008 | Y3S7500D2C0G1009 |
20 | 60 | 0 | 0 | Y3S76000120G1008 | Y3S76000120G1009 |
20 | 60 | 0 | 16 | Y3S760002C0G1008 | Y3S760002C0G1009 |
20 | 60 | 10 | 0 | Y3S7600A120G1008 | Y3S7600A120G1009 |
20 | 60 | 10 | 16 | Y3S7600A2C0G1008 | Y3S7600A2C0G1009 |
20 | 60 | 23.5 | 0 | Y3S7600D120G1008 | Y3S7600D120G1009 |
20 | 60 | 23.5 | 16 | Y3S7600D2C0G1008 | Y3S7600D2C0G1009 |
20 | 77 | 0 | 0 | Y3S77700120G1008 | Y3S77700120G1009 |
20 | 77 | 0 | 16 | Y3S777002C0G1008 | Y3S777002C0G1009 |
20 | 77 | 10 | 0 | Y3S7770A120G1008 | Y3S7770A120G1009 |
20 | 77 | 10 | 16 | Y3S7770A2C0G1008 | Y3S7770A2C0G1009 |
20 | 77 | 23.5 | 0 | Y3S7770D120G1008 | Y3S7770D120G1009 |
20 | 77 | 23.5 | 16 | Y3S7770D2C0G1008 | Y3S7770D2C0G1009 |
25 | 0 | 0 | 0 | Y3S70000125G1008 | Y3S70000125G1009 |
25 | 0 | 0 | 16 | Y3S700002C5G1008 | Y3S700002C5G1009 |
25 | 0 | 10 | 0 | Y3S7000A125G1008 | Y3S7000A125G1009 |
25 | 0 | 10 | 16 | Y3S7000A2C5G1008 | Y3S7000A2C5G1009 |
25 | 0 | 23.5 | 0 | Y3S7000D125G1008 | Y3S7000D125G1009 |
25 | 0 | 23.5 | 16 | Y3S7000D2C5G1008 | Y3S7000D2C5G1009 |
25 | 45 | 0 | 0 | Y3S74500125G1008 | Y3S74500125G1009 |
25 | 45 | 0 | 16 | Y3S745002C5G1008 | Y3S745002C5G1009 |
25 | 45 | 10 | 0 | Y3S7450A125G1008 | Y3S7450A125G1009 |
25 | 45 | 10 | 16 | Y3S7450A2C5G1008 | Y3S7450A2C5G1009 |
25 | 45 | 23.5 | 0 | Y3S7450D125G1008 | Y3S7450D125G1009 |
25 | 45 | 23.5 | 16 | Y3S7450D2C5G1008 | Y3S7450D2C5G1009 |
25 | 50 | 0 | 0 | Y3S75000125G1008 | Y3S75000125G1009 |
25 | 50 | 0 | 16 | Y3S750002C5G1008 | Y3S750002C5G1009 |
25 | 50 | 10 | 0 | Y3S7500A125G1008 | Y3S7500A125G1009 |
25 | 50 | 10 | 16 | Y3S7500A2C5G1008 | Y3S7500A2C5G1009 |
25 | 50 | 23.5 | 0 | Y3S7500D125G1008 | Y3S7500D125G1009 |
25 | 50 | 23.5 | 16 | Y3S7500D2C5G1008 | Y3S7500D2C5G1009 |
25 | 60 | 0 | 0 | Y3S76000125G1008 | Y3S76000125G1009 |
25 | 60 | 0 | 16 | Y3S760002C5G1008 | Y3S760002C5G1009 |
25 | 60 | 10 | 0 | Y3S7600A125G1008 | Y3S7600A125G1009 |
25 | 60 | 10 | 16 | Y3S7600A2C5G1008 | Y3S7600A2C5G1009 |
25 | 60 | 23.5 | 0 | Y3S7600D125G1008 | Y3S7600D125G1009 |
25 | 60 | 23.5 | 16 | Y3S7600D2C5G1008 | Y3S7600D2C5G1009 |
25 | 77 | 0 | 0 | Y3S77700125G1008 | Y3S77700125G1009 |
25 | 77 | 0 | 16 | Y3S777002C5G1008 | Y3S777002C5G1009 |
25 | 77 | 10 | 0 | Y3S7770A125G1008 | Y3S7770A125G1009 |
25 | 77 | 10 | 16 | Y3S7770A2C5G1008 | Y3S7770A2C5G1009 |
25 | 77 | 23.5 | 0 | Y3S7770D125G1008 | Y3S7770D125G1009 |
25 | 77 | 23.5 | 16 | Y3S7770D2C5G1008 | Y3S7770D2C5G1009 |
Cable gland not included in these reference, consult us if you want them.
Accessories
Internal bracket for inside adjustment thermostat |
Silicone cap for thermostat adjustment hole |
PA66, 6 way connection block |
Brass fittings |
Massive stainless steel fitting, for custom hole drilling |
Deep drawn stainless steel fitting |
9BBAE1000ELH008A |
9BBJO1000004078A |
BE6E6000000MP000 |
For full range and references of fittings, nuts and gaskets: immersion heater accessories. | Available without holes or drilled upon request. Ask for references | Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references |
