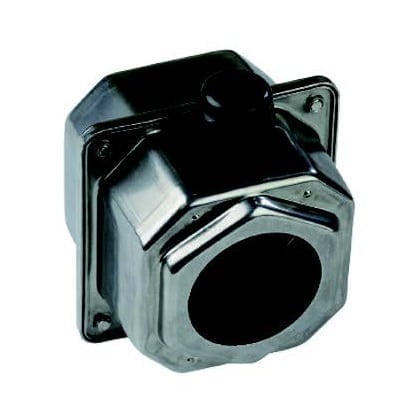

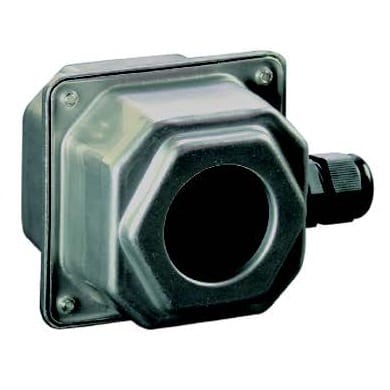

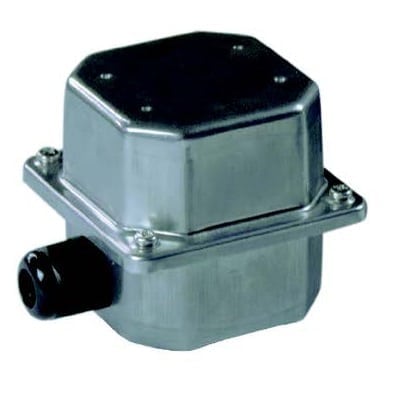

Stainless steel immersion heater enclosure with built-in hexagon for fitting, Y3S4

– High lid
– Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut
– Can be used with 1 ″1/4 or 1 ″1/2 or M45 TIG welded fittings
– Hole for M20 cable gland
– Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting, with 54mm on flat hexagon

Dimensions 90 × 90 × 82 mm
Ingress protection

Mechanical protection

Housing raw material

, ,

Volume (cm³)

SKU: Y3S4 Categories: , Tags: , , , , , ,

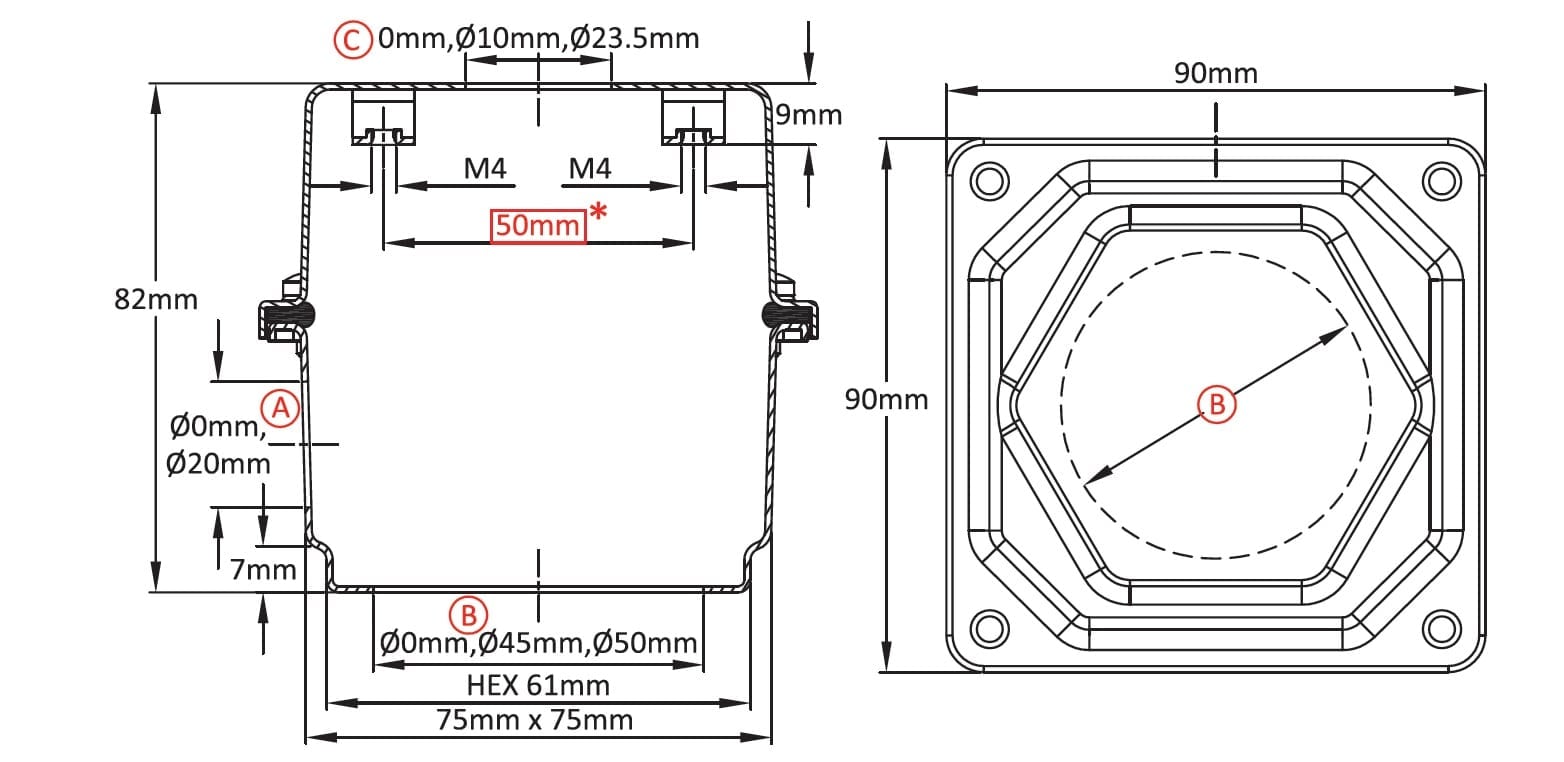

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main features

Immersion heater enclosure with built-in hexagon for fitting
– High lid
– Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut
– Can be used with 1 ″1/4 or 1 ″1/2 or M45 TIG welded fittings
– Hole for M20 cable gland
– Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting, with 54mm on flat hexagon

Size: 90 x 90 x 75 mm

Volume: 392 cm³

Material: Stainless steel deep drawn cover and bottom.

Ingress protection: IP69K

Mechanical impact resistance: IK7

Screws: Stainless Steel.

Cover gasket: Molded Silicone.



Basic references

Accessories



Internal bracket for inside adjustment thermostat



Silicone cap for thermostat adjustment hole



PA66, 6 way connection block



Brass fittings

 Massive stainless steel fitting, for custom hole drilling

Deep drawn stainless steel fitting


9BBAE1000ELH008A



9BBJO1000004078A



BE6E6000000MP000

 For full range and references of fittings, nuts and gaskets: immersion heater accessories. Available without holes or drilled upon request. Ask for references Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references



To access download documents, please Login/Register.  Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.

Downloads

Datasheets

Drawings
