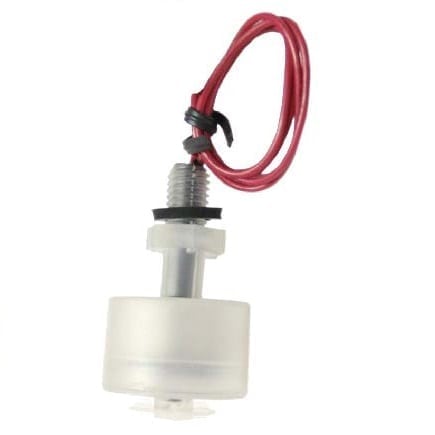

Vertical mounting, reed switch contact, polypropylene stem with M8 thread, cable output, dia. 25×15 mm hollow polypropylene float
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers. Most application in water level control.
| Stem material | |
|---|---|
| Float material | |
| Mounting position | |
| Mounting type | |
| Electrical rating | |
| Contact resistance (mOhms) | |
| Wire lengths (mm) | |
| Max operating temperature (°C) | |
| Min operating temperature (°C) | |
| Maximum pressure |
Use: low voltage circuits
Main applications: steam generators, coffee machines, vending machines, air conditioning pumps, dehumidifiers. Most application in water level control.
Stem material: polypropylene
Float material: hollow polypropylene
Mounting: vertical, throw wall, with M8 nut and flat NBR gasket
Contact configuration: normally closed when float is down on the stem. It opens when float goes up to the wiring side. Upsetting the float changes the contact configuration into normally open
Electrical rating:
Low voltage type: maximum power 10 W (VA), max 0.5Amp, max voltage 110VAC.
230VAC type: max power 40 W (VA), max 1Amp. Values for resistive circuit. For inductive or capacitive loads, a contact protection circuit must be used.
Contact resistance: 150mOhms maxi ( wires not included)
Wires: AWG24 cable, UL style 2464, PVC insulated, length 100, 500, 1000 or 2000 mm
Liquid limits: to be used with liquids chemically compatible with polypropylene, dynamic viscosity higher 0.5×10-4 Pa.s and lower than 10-2 Pa.s, specific gravity higher than 0.9, without magnetic particles.
Ambient temperature: -20+80°C
Maximum pressure: 1 bar (15 PSI)
Options: Slosh shield for use in turbulence applications, other cable length, electrical rating 70W, 1A, 250VAC.
Dimensions
Main references
| Electrical Rating | Cable 100 mm | Cable 500 mm | Cable 1000 mm | Cable 2000 mm |
| 10VA (max 110VAC) | DMF0F082825F1050 | DMF0F082825F5050 | DMF0F082825FA050 | DMF0F082825FB050 |
| 40VA (max 230VAC) | DMF4F082825F1050 | DMF4F082825F5050 | DMF4F082825FA050 | DMF4F082825FB050 |
